PISTON RING SET 360T, 104.77 (CHROME TOP RING) 4 RING

PISTON RING SET 360T, 104.77 (CHROME TOP RING) 4 RING

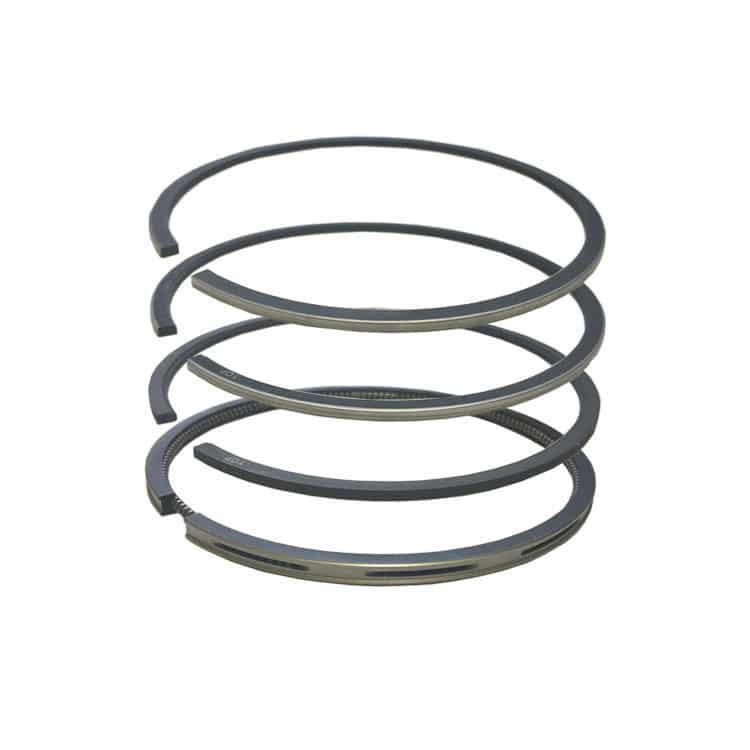

This Ford Dorset 2704ET and Dover 2726T and 2728TIM piston ring set features a chrome-plated top compression ring and is designed for use in turbocharged Dorset and Dover diesel engines fitted with cast cylinder liners and 4 ring pistons. This ring set is ideal for engine rebuilds, repairs, and piston replacements where a chrome top ring specification is required.

Designed for Cast Liner Engines

The chrome top ring provides the correct compatibility and wear characteristics required when operating with cast cylinder liners.

Engine Applications

Ford Dorset 2704ET Engines

Suitable for turbocharged Ford Dorset 2704ET engines with Mermaid piston part number 1-1548735.

Turbocharged Dover Engines Under 212HP

For turbocharged Ford Dover engines producing under 212HP, the engine is fitted with piston assembly 2720830M, which is supplied with the correct chrome top piston ring already installed.

Turbocharged Dover Engines Over 212HP

For engines producing over 212HP, the heavy-duty piston assembly N101189 is typically fitted. This piston assembly is supplied complete with piston rings and is intended for use in cast-lined engines.

When installing the N101189 piston assembly into an engine fitted with chrome liners, the supplied top ring must be replaced with a chrome-plated version. In these applications, piston ring set 3-2720831 is required to provide the correct chrome top ring specification.

Key Features

Product Benefits

• Suitable for Ford Dorset 2704 and Dover 2726T / 2728TIM engines that use the superior 4 ring piston assembly.
• Designed for engines with cast iron cylinder liners
• Ideal for overhaul, repair, and rebuild application
• Suitable replacement ring set for piston assembly 2720830M and N101189 piston assembly when fitted to engines with cast liners.
