Perkins 1104D-44TA Engine NM84267

Perkins 1104D-44TA Engine NM84267

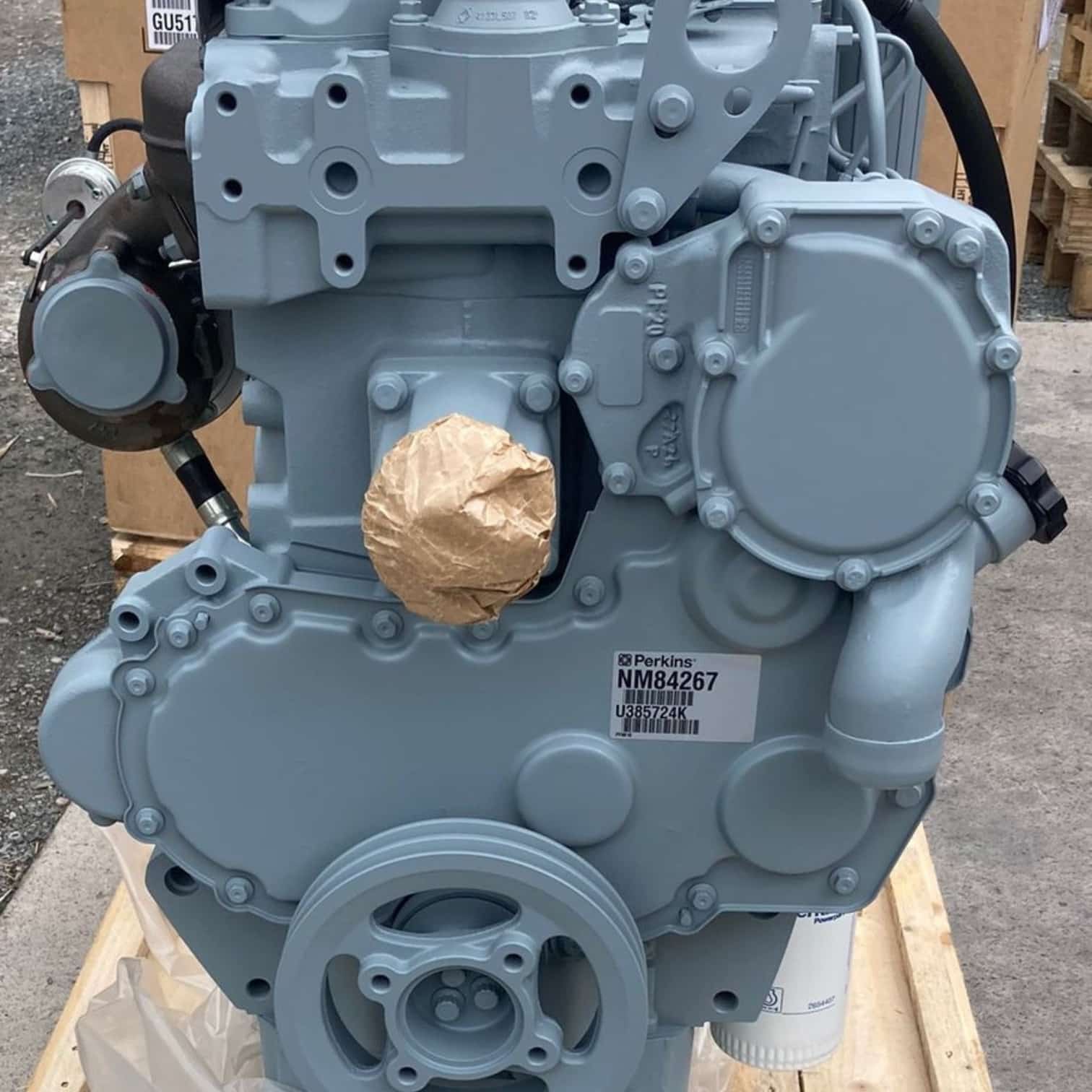

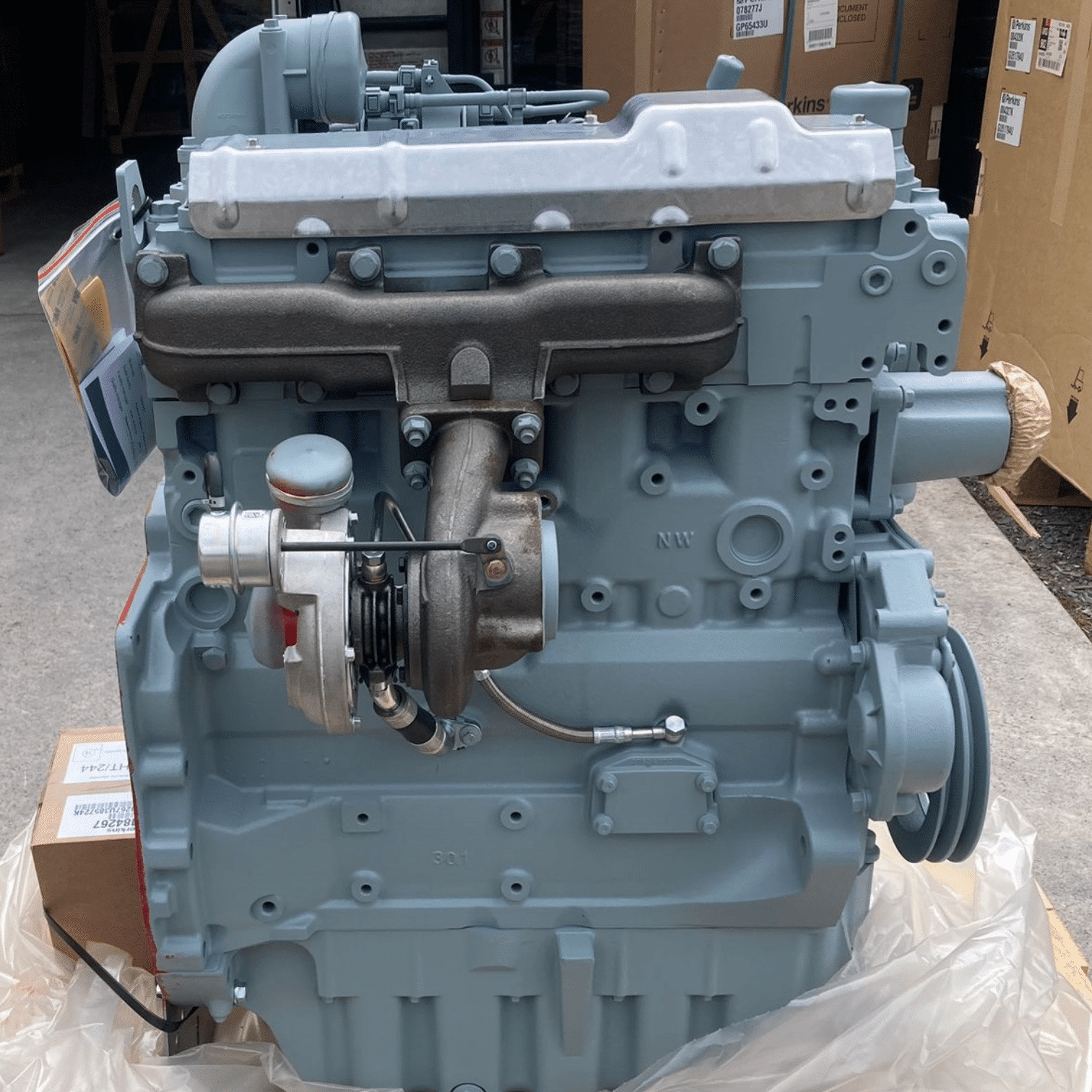

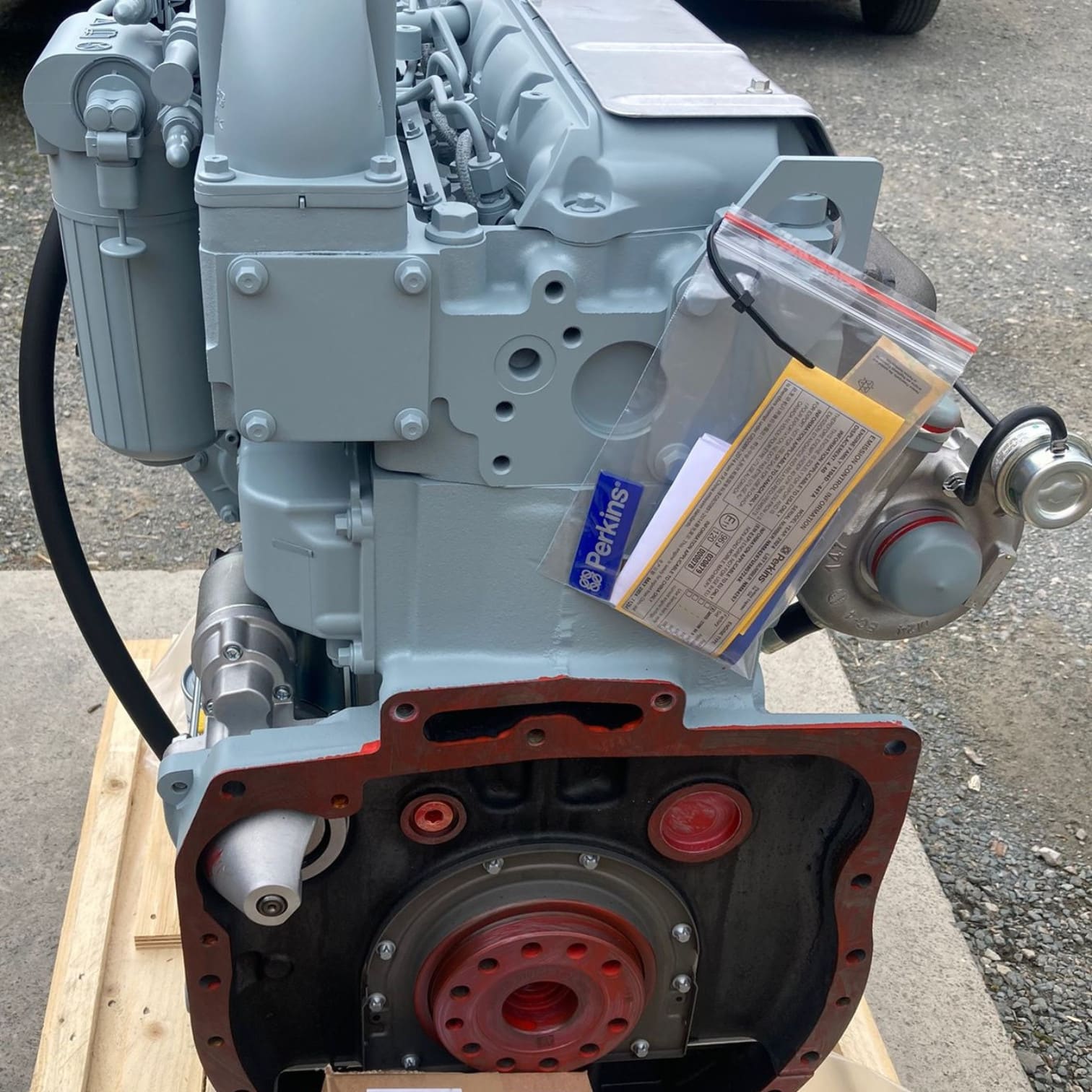

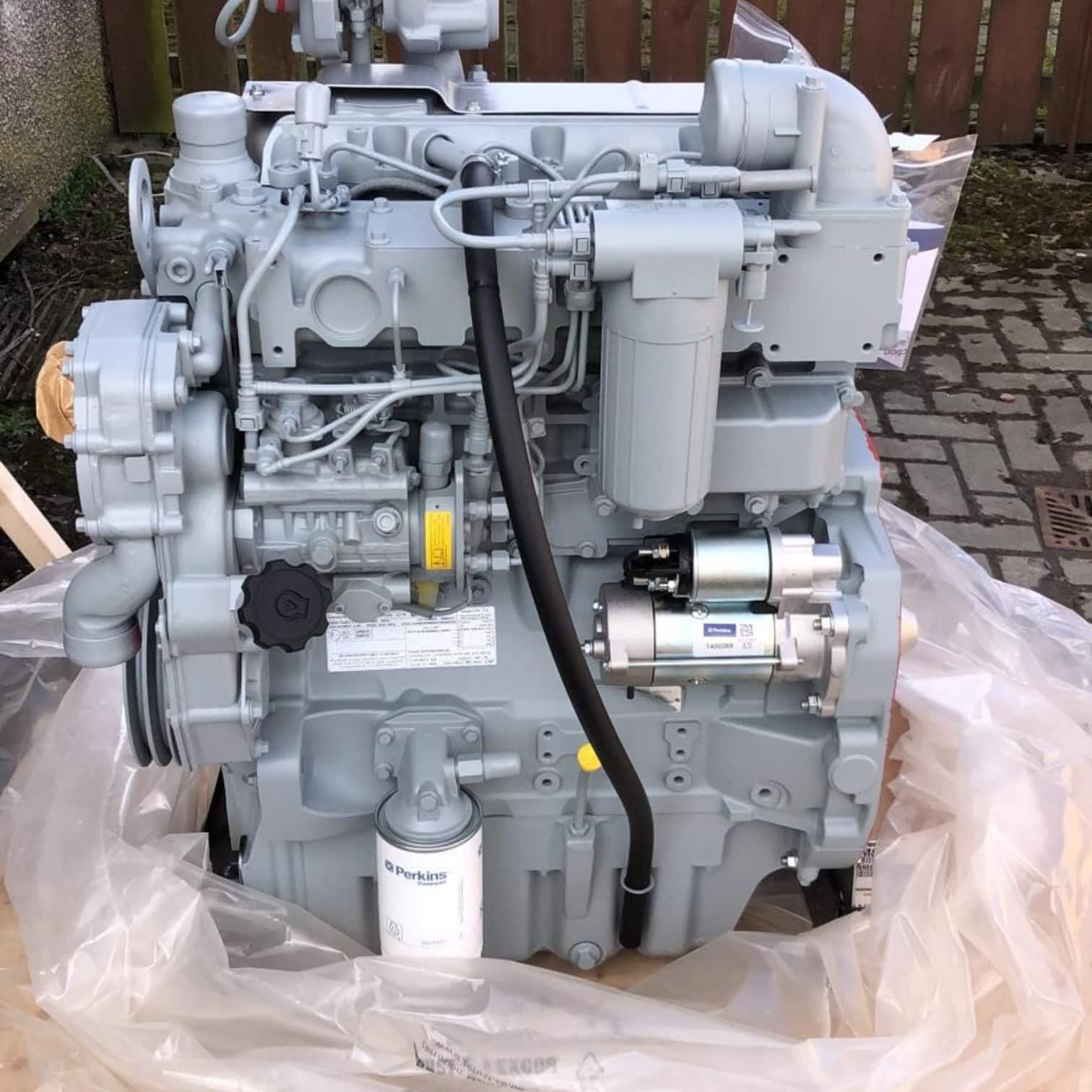

The Perkins 1104D-44TA is a four-cylinder, 4.4 litre diesel from the Perkins 1100 Series. It is turbocharged and aftercooled, built to EU Stage IIIA / Tier 3, and supplied here as the NM build under Perkins code NM84267.

It runs a 105mm bore and 127mm stroke, with a mechanically controlled fuel system, direct injection, and a 1-3-4-2 firing order. The mechanical fuel control keeps it straightforward to maintain. Power and torque are set to the build rating.

This NM build becomes the equivalent of the RJ51136 and RJ51137 once the exhaust manifold and turbocharger from your original engine are fitted to it. That gives a direct route to replacing either of those builds without sourcing a like-for-like unit.

Key features:

• Perkins 1100 Series, four-cylinder, 4.4 litre
• Turbocharged and aftercooled
• 105mm bore, 127mm stroke
• Mechanically controlled fuel system, direct injection
• Firing order 1-3-4-2
• EU Stage IIIA, EPA Tier 3 equivalent
• NM build, equivalent to RJ51136/RJ51137 with your original manifold and turbo fitted Perkins build code NM84267
