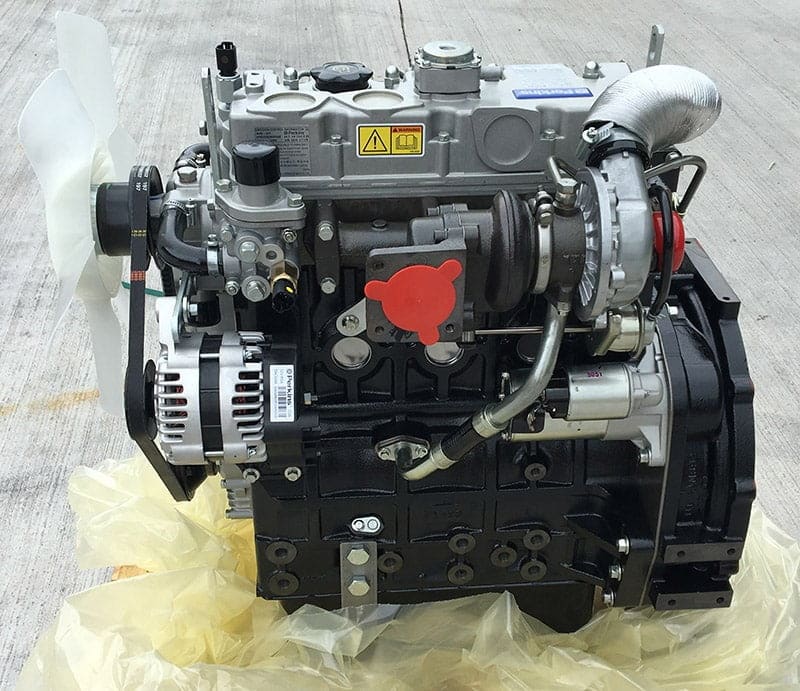

New genuine Perkins 404D-22T turbocharged complete engine, variable speed. 2.2-litre, 45.5kW (61HP). Replaces 404C and 404D turbo applications. Build list GP65433.
£3,750.00 + VAT
New, genuine Perkins 404D-22T complete turbocharged engine, variable speed specification. Build list number GP65433. Supplied fully dressed including alternator, fan and starter motor.
2.2-litre, 4-cylinder, in-line, turbocharged. Bore 84mm, stroke 100mm, firing order 1-3-4-2. Indirect injection, mechanical fuel system. Up to 45.5kW (61HP). Maximum torque 192Nm. EU Stage IIIA / EPA Tier 4 Interim equivalent.
Supplied in 2-bolt PTO configuration. If your application uses a 4-bolt PTO fitting, call us before ordering to confirm suitability. Directly replaces Perkins 404C and 404D turbo applications. Recognised cross-reference for the Shibaura N844T and Caterpillar C2.2.
This is a Perkins engine commonly fitted as a replacement unit in JCB compact excavators and telehandlers. It is not a JCB-manufactured engine.
Mini Excavators: JCB 8050RTS, 8050ZTS, 8052, 8060 and 8080 (turbocharged specification).
Telehandlers: JCB 515-40 and 520-40 Loadall (turbocharged specification).
Skid Steer Loaders: JCB 135R (turbocharged specification where fitted).
Fitments vary by production year and machine specification. Confirm your existing engine build prefix before ordering. Not sure if this is the right engine for your machine? Call us with your machine serial number and we will confirm.
| Weight | 500 kg |
|---|---|
| Dimensions | 120 × 80 × 120 cm |
| Condition | New |
| Brand | Perkins |
| Power (kW/HP) | 45.5kW (61HP) @ 2,200rpm |
| Max Torque | 192Nm @ 1,800rpm |
| Cylinders | 4 Inline |
| Emissions Tier | EU Stage IIIA / EPA Tier 4 Interim equivalent |
| Speed Type | Variable speed |
| Electrics | 12V / 24V compatible |
| PTO Configuration | 2 Bolt |
| Air Intake | Turbocharged, aftercooled |
| Displacement | 2,216cc (2.2L) |
