JCB 444 74kW TCA 12V Tier 3 Engine

JCB 444 74kW TCA 12V Tier 3 Engine

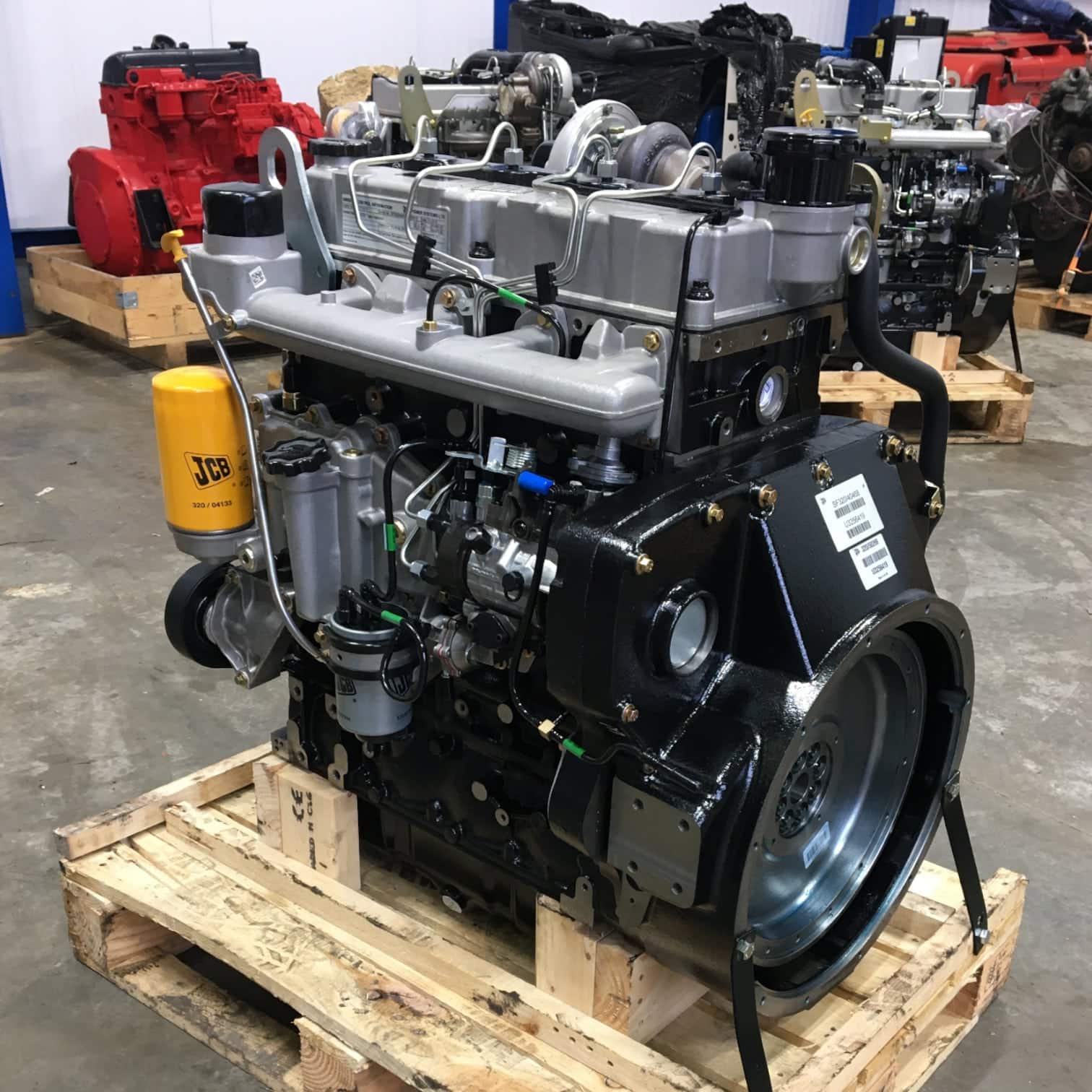

New JCB 444 DieselMax engine. 74kW (99HP) at 2,200rpm. Mechanical Tier 3 / EU Stage IIIA. Part number 320/40201. Supplied complete with 12V starter motor and electrics.

4.4-litre, 4-cylinder, in-line. Bore 103mm, stroke 132mm, firing order 1-3-4-2. Turbocharged and charge air cooled (TCA), mechanical injection. No common rail, no ECU, no after-treatment.

Please note: this engine is available to order with a 12 to 15 week lead time. If you need a faster turnaround, the JCB 444 74kW Turbo 12V is a Tier 2 alternative in stock now — your intercooler would not be used with that unit, but this will not impact the power output.

Machine Compatibility

Backhoe Loaders: JCB 3CX higher output specification (Tier 3, approximately 2009 to 2014, TCA mechanical), JCB 4CX (Tier 3, approximately 2009 to 2014).

Telehandlers (Construction): JCB 531-70 (Tier 3, depending on specification), JCB 533-105, JCB 535-95 (Tier 3), JCB 540-140 (Tier 3), JCB 541-70 (Tier 3).

Telehandlers (Agricultural): JCB 531-70 Agri, JCB 535-95 Agri, JCB 536-60 Agri, JCB 541-70 Agri (all Tier 2 agricultural specification).

Fitments vary by production year, market specification and machine configuration. Not sure if this is the right engine for your machine? Use the JCB 444 Engine Cross Reference tool or call us with your serial number.
