JCB 444 68kW mechanical Tier 3 turbocharged engine, 12V electrics. 4-cylinder, 4.4L, 91HP at 2,200rpm.
Replaces 320/41995, 320/40064, 320/40335, 320/40346 and more.
£5,950.00 + VAT

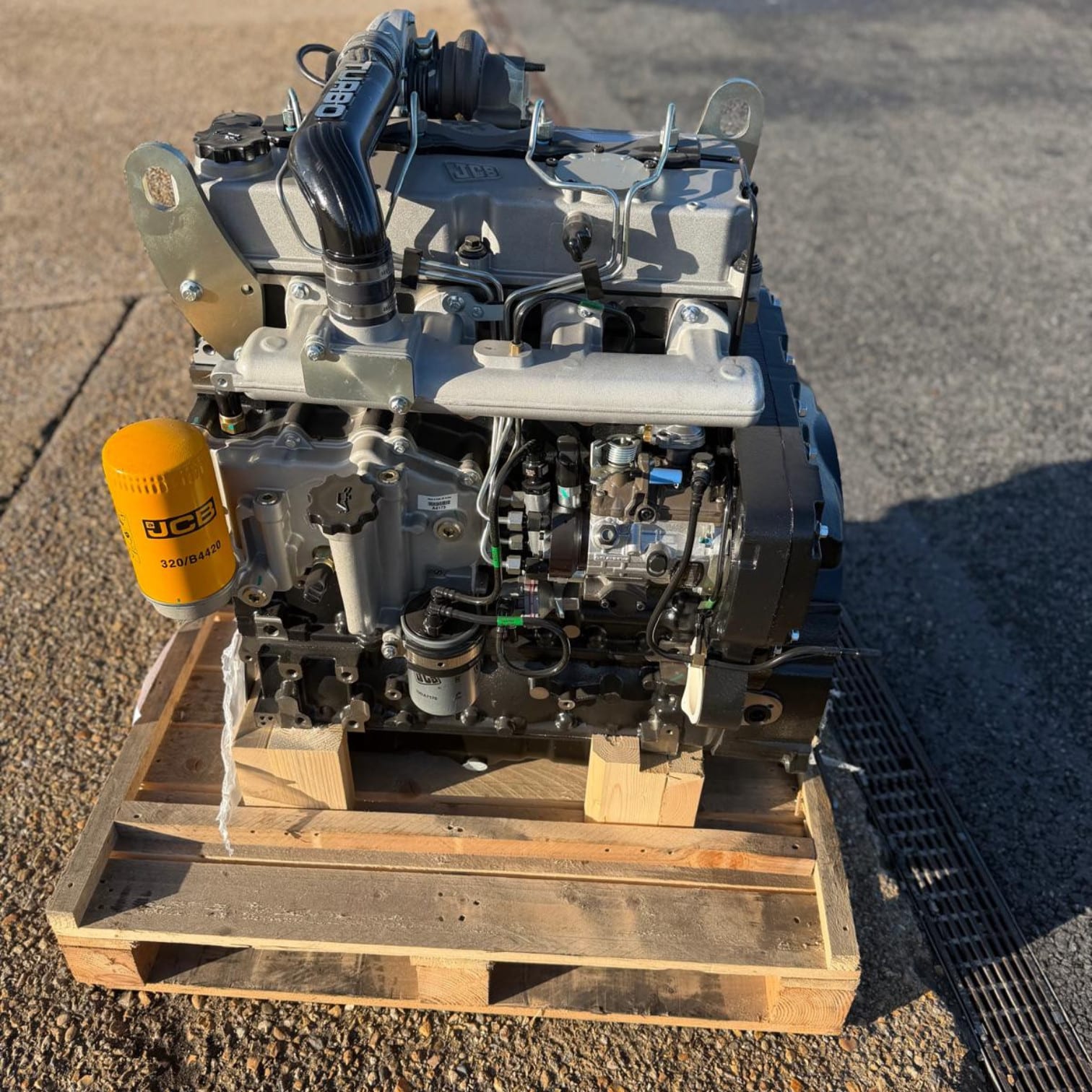

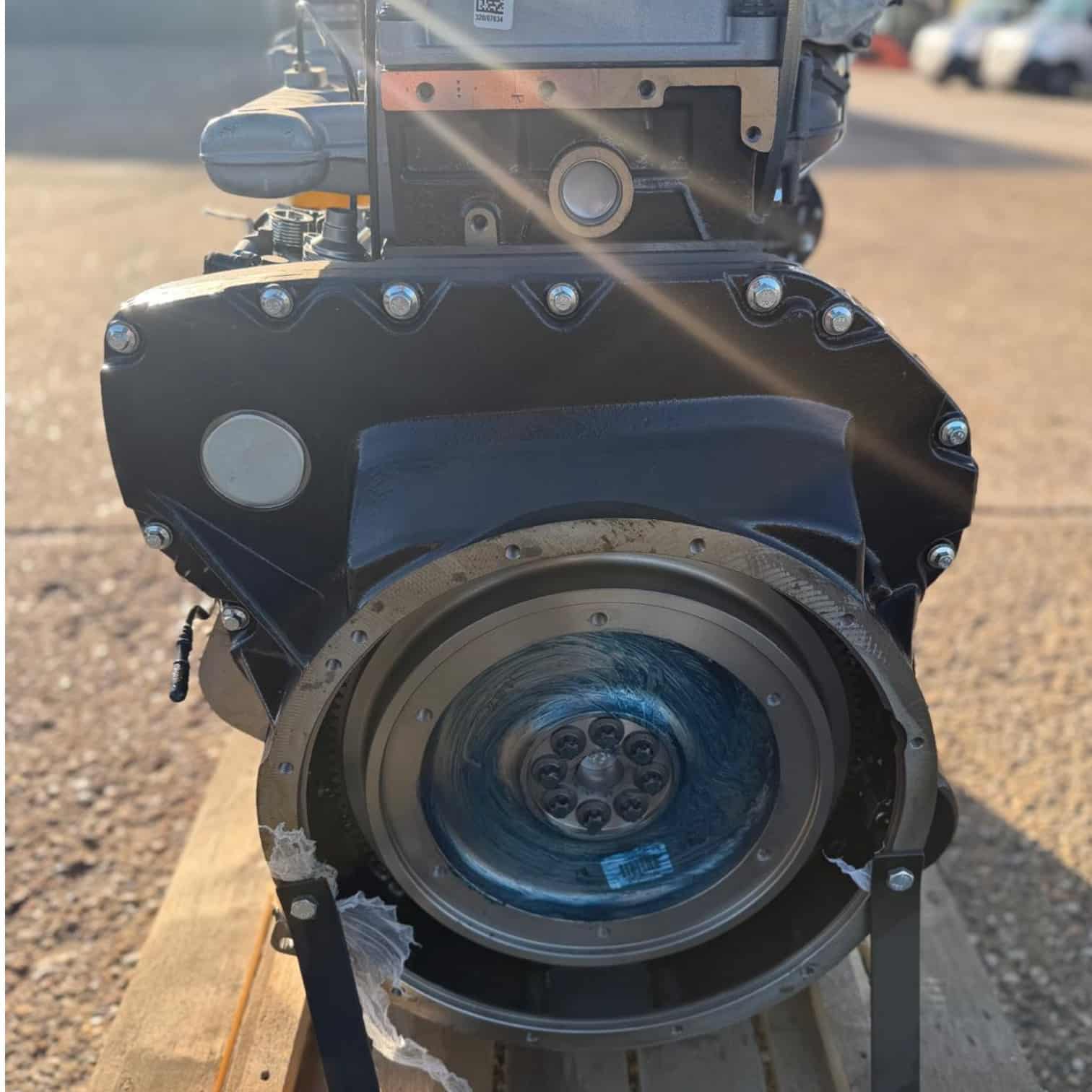

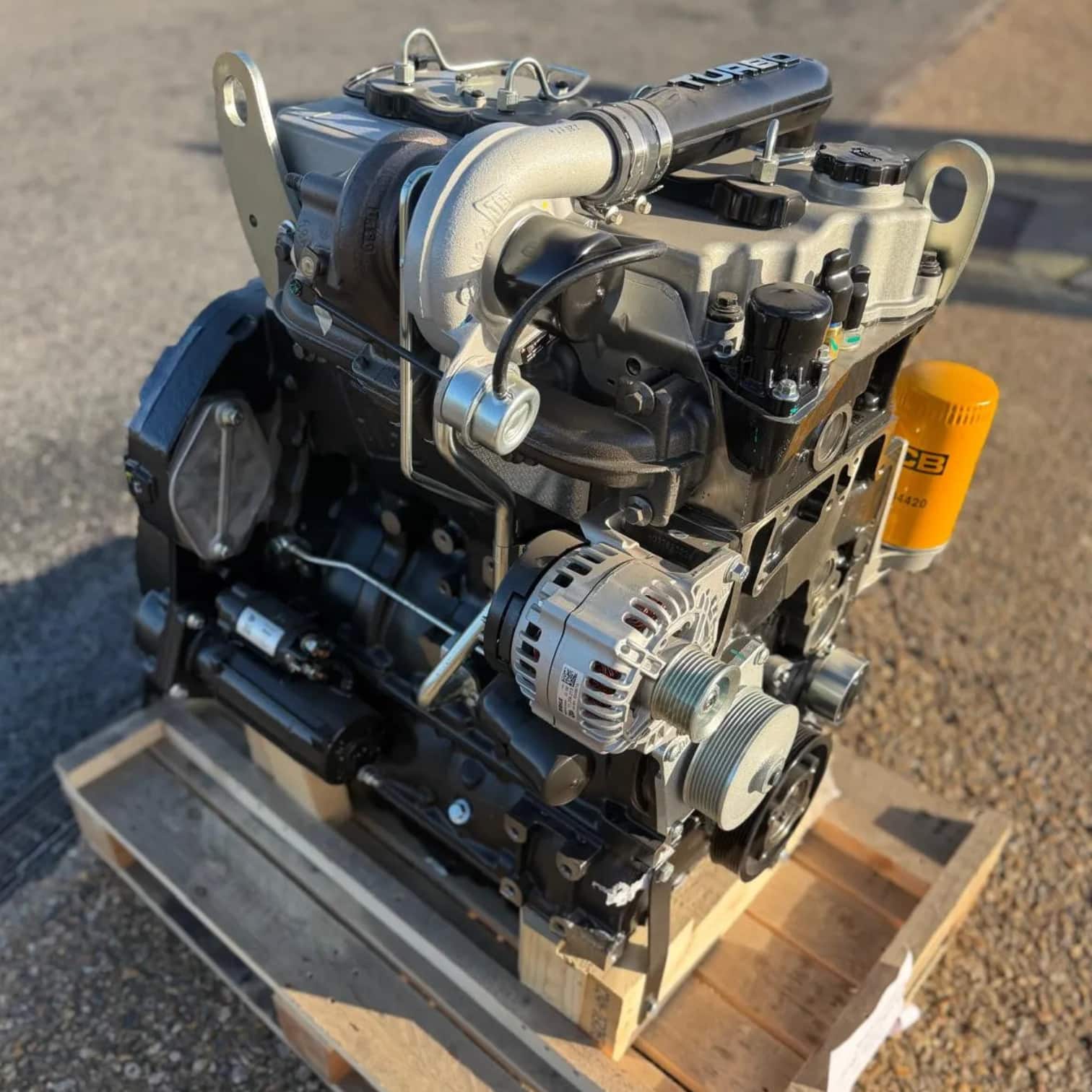

New, unused JCB 444 DieselMax engine. 68kW (91HP) at 2,200rpm. Mechanical Tier 3 / EU Stage IIIA. Supplied complete with 12V starter motor and electrics.
4.4-litre, 4-cylinder, in-line. Bore 103mm, stroke 132mm, firing order 1-3-4-2. Mechanical rotary injection pump. No common rail, no ECU, no after-treatment. Maximum torque 362Nm at 1,200rpm.
The JCB 444 DieselMax has been previously supplied against multiple JCB part numbers including 320/40064, 320/40335 and 320/40346. If your turbocharger is mounted differently to the standard configuration, enquire before ordering.
Backhoe Loaders: JCB 3CX (Tier 3, approximately 2009 to 2014, mechanical injection).
Telehandlers: JCB 526-56 (Tier 3, compact telehandler), JCB 531-70 (Tier 3), JCB 536-60 (Tier 2), JCB 536-70 (Tier 2).
Skid Steer Loaders: JCB 300 and 320T. Also fitted as OEM by Volvo in the MC135C and MC155C compact loaders (JCB-manufactured, 92hp T3).
Fitments vary by production year, market specification and machine configuration. Not sure if this is the right engine for your machine? Use the JCB 444 Engine Cross Reference tool or call us with your serial number.
| Weight | 500 kg |
|---|---|
| Dimensions | 120 × 80 × 120 cm |
| Condition | New |
| Brand | JCB |
| Model | JCB 444 |
| Emissions Tier | Stage 3A |
| Displacement | 4.4L (4,399cc) |
| Cylinders | 4 |
| Power (kW/HP) | 68kW (91HP) |
| Rated Speed | 2,200rpm |
| Max Torque | 362Nm |
| Fuel Injection System | Mechanical rotary injection |
| Electrics | 12V |
